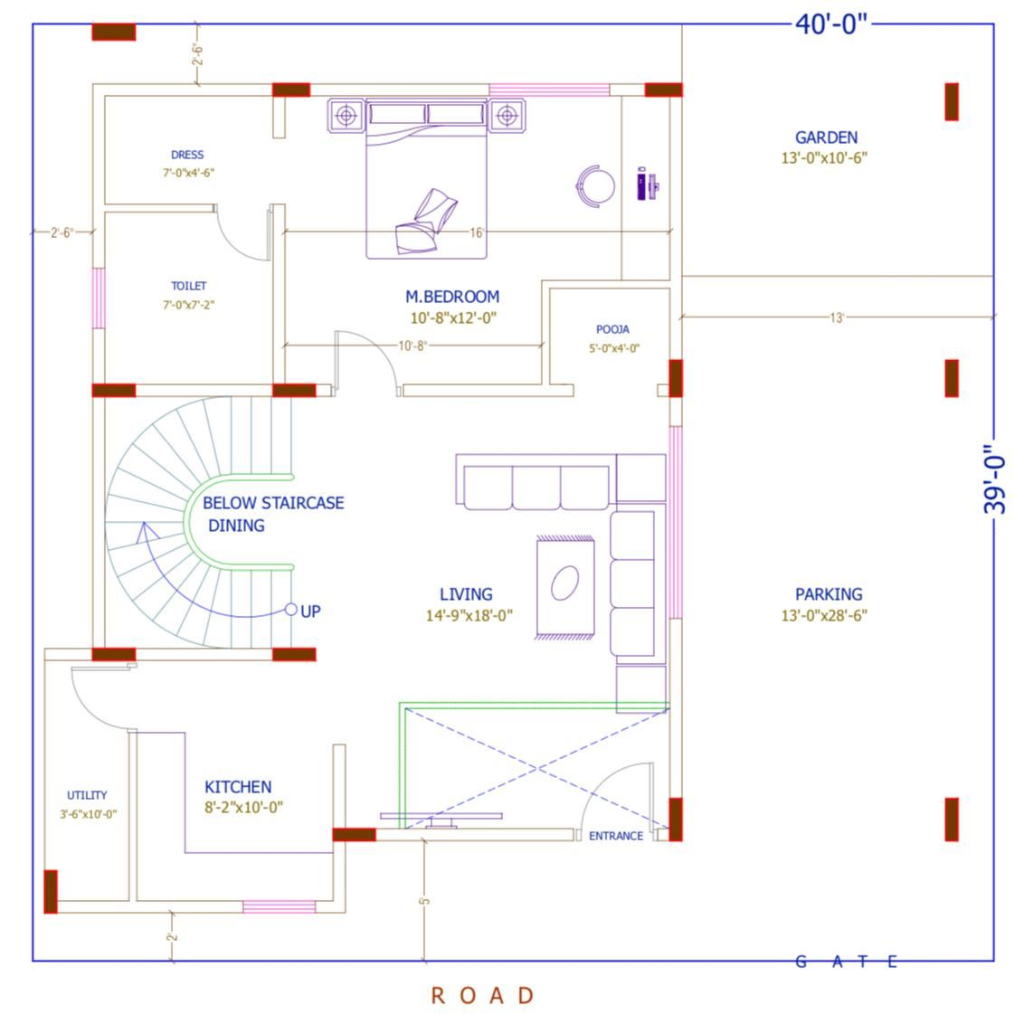

40' x 39' Luxury Villa – Ground Floor Plan

40' x 39' Triplex Series

Ground Floor40'-0" x 39'-0"

40' x 39' Luxury Villa – Ground Floor Plan

Complete Living Suite with Curved Staircase, Garden & Large Car Porch

Living Hall: 14'-9" x 18'-0"Master Bedroom: 10'-8" x 12'-0"Dress Room: 7'-0" x 4'-6"En-suite Toilet: 7'-0" x 7'-2"+5 more rooms

A grand entrance plan featuring an expansive 28ft covered parking and landscaped garden, double-height living foyer, signature curved spiral staircase, dedicated Pooja room, master bedroom with walk-in wardrobe, and kitchen with attached utility.

Inquire

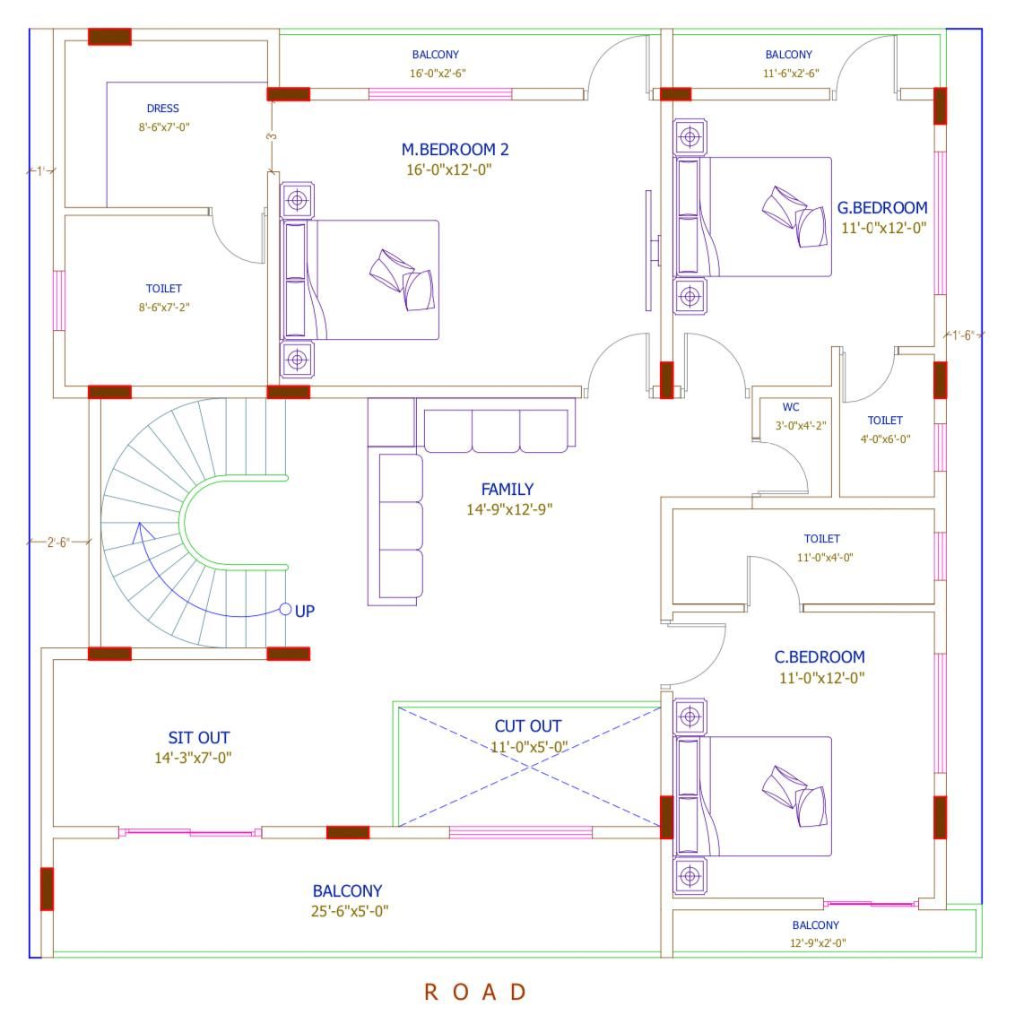

40' x 39' Luxury Villa – First Floor Plan

40' x 39' Triplex Series

First Floor40'-0" x 39'-0"

40' x 39' Luxury Villa – First Floor Plan

3 Master Bedrooms, Private Balconies & Central Family Lounge

Master Bedroom 2: 16'-0" x 12'-0"Dress Area: 8'-6" x 7'-0"En-suite Toilet: 8'-6" x 7'-2"Guest Bedroom: 11'-0" x 12'-0"+5 more rooms

Upper floor sanctuary designed with 3 spacious bedroom suites, each with dedicated bathrooms and private sit-outs. Includes a central family lounge, open double-height architectural cut-out, and a continuous 25'-6" wide front balcony.

Inquire

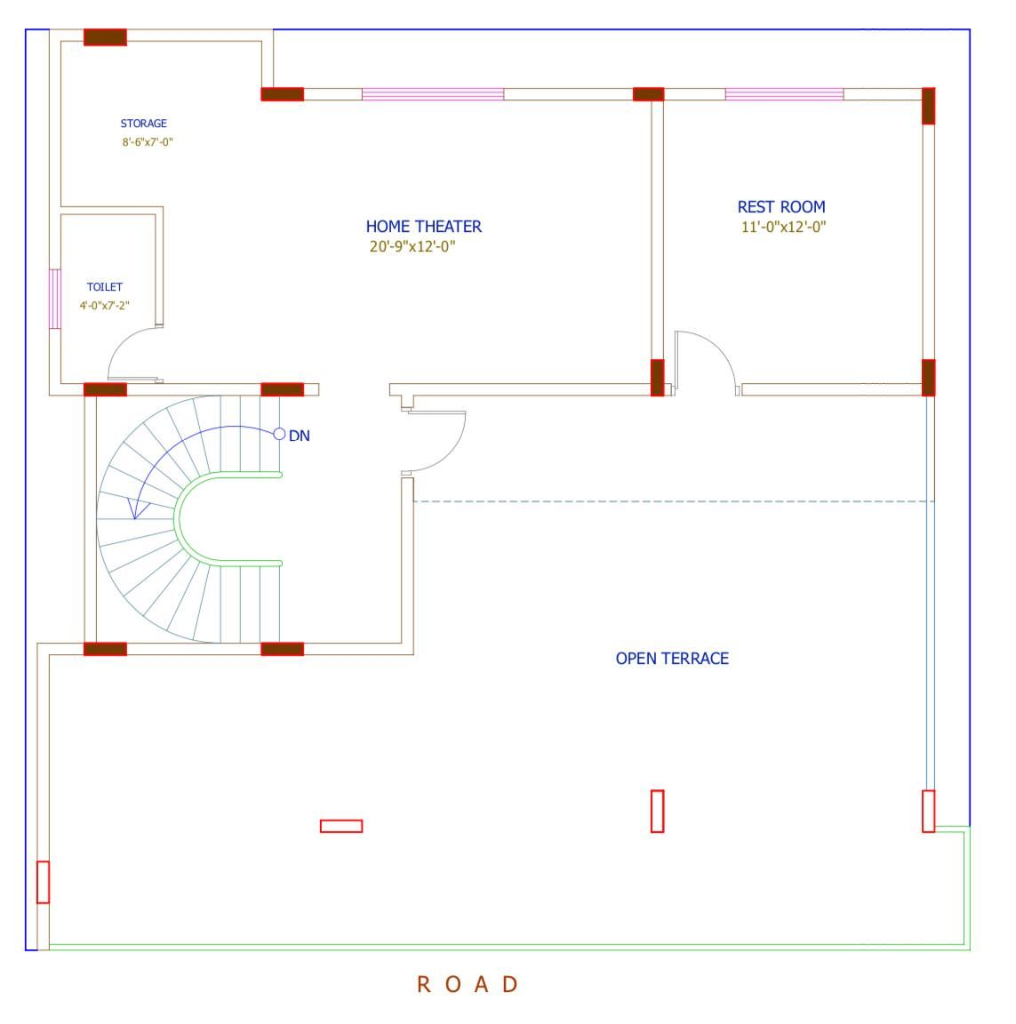

40' x 39' Luxury Villa – Second Floor & Terrace

40' x 39' Triplex Series

Second Floor / Terrace40'-0" x 39'-0"

40' x 39' Luxury Villa – Second Floor & Terrace

Acoustic Home Theater Lounge, Rest Room & Expansive Open Sky Terrace

Home Theater Lounge: 20'-9" x 12'-0"Rest Room / Suite: 11'-0" x 12'-0"Storage Room: 8'-6" x 7'-0"Toilet: 4'-0" x 7'-2"+1 more rooms

The ultimate entertainment and relaxation floor featuring an oversized 20'-9" x 12'-0" dedicated Home Theater lounge, rest room suite with toilet, storage room, and an expansive open terrace overlooking the road.

Inquire

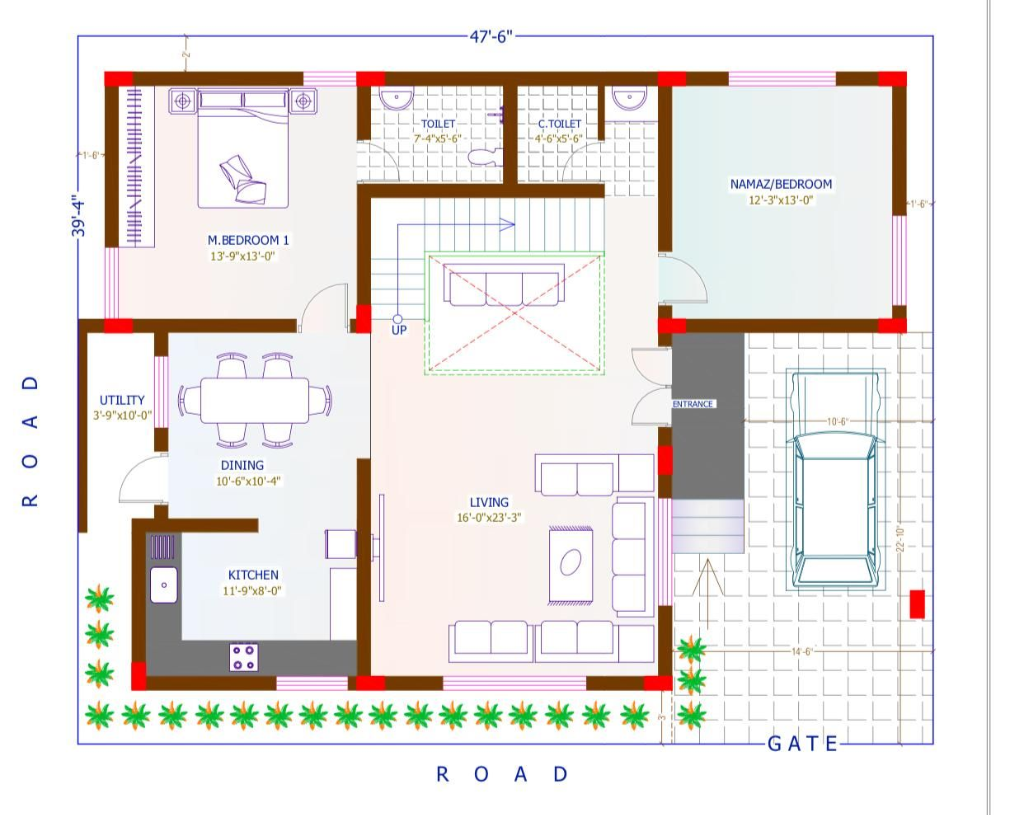

47'-6" x 39'-4" Luxury Corner Villa – Ground Floor Plan

47' x 39' Corner Series

Ground Floor47'-6" x 39'-4"

47'-6" x 39'-4" Luxury Corner Villa – Ground Floor Plan

Corner Plot Layout with Dual Road Access, Double-Height Living & Namaz Room

Grand Living Hall: 16'-0" x 23'-3"Dining Room: 10'-6" x 10'-4"Modular Kitchen: 11'-9" x 8'-0"Utility Yard: 3'-9" x 10'-0"+5 more rooms

A grand corner villa floor plan with wide frontage, deep porch parking (10'-6" x 22'-10"), double-height living room (16'-0" x 23'-3"), open dining hall, modular kitchen + utility, master bedroom, dedicated Namaz/prayer room, and perimeter landscaped setbacks.

Inquire

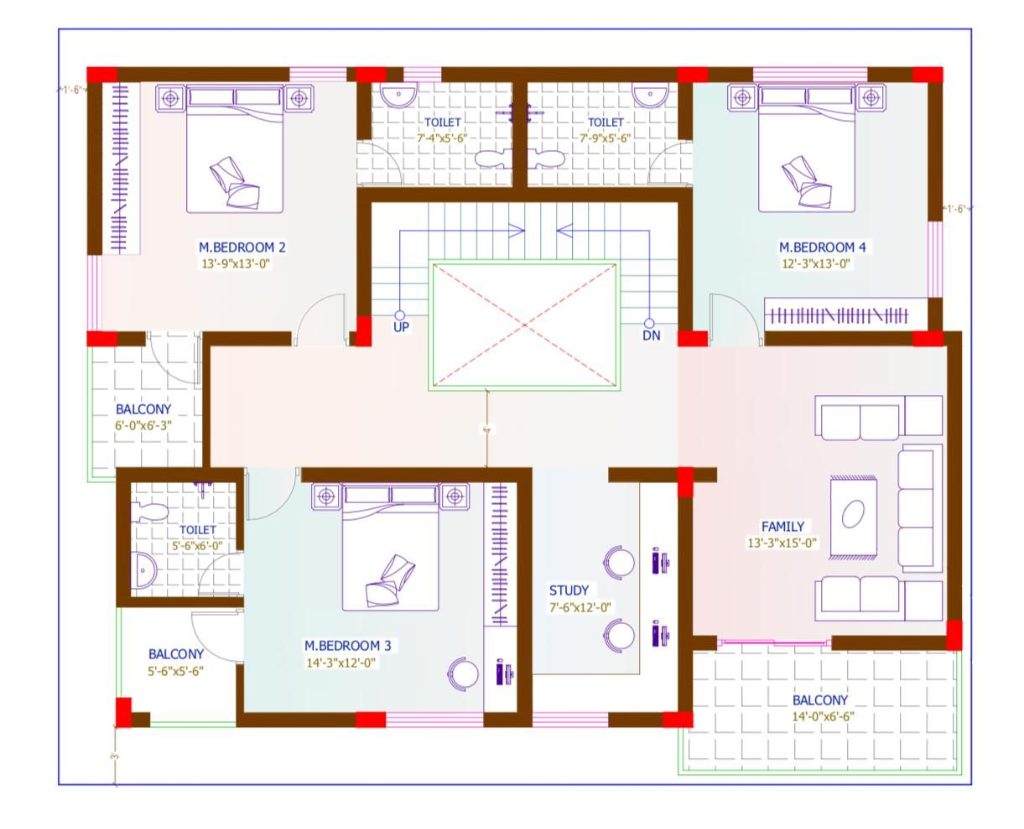

47'-6" x 39'-4" Luxury Corner Villa – First Floor Plan

47' x 39' Corner Series

First Floor47'-6" x 39'-4"

47'-6" x 39'-4" Luxury Corner Villa – First Floor Plan

3 Master Bedrooms, Dedicated Study Room & Upper Family Lounge

Master Bedroom 2: 13'-9" x 13'-0"Master Bedroom 3: 14'-3" x 12'-0"Master Bedroom 4: 12'-3" x 13'-0"Study / Office: 7'-6" x 12'-0"+4 more rooms

A premium upper level layout featuring 3 executive Master Bedroom suites, each equipped with attached bathrooms and private balconies, plus a dedicated study/home office (7'-6" x 12'-0"), and an upper family entertainment lounge overlooking the grand living room cut-out.

Inquire

Complete Construction Drawings

What Is Included in Our Building Plan Package

Our architectural drawings provide 100% technical clarity for civil contractors, masons, plumbers, and electricians.

Ergonomic Living

Spatial & Furniture Layout

Detailed positioning of beds, sofas, dining tables, wardrobes, and kitchen counters for optimal ergonomics.

Structural Integrity

Centerline & Column Grid

Accurate column orientation, footing layout, and structural grid aligned with RCC structural safety.

Zero Site Clashes

Electrical & Plumbing Conduits

Switchboard locations, appliance load mapping, water supply lines, drainage traps, and sanitary layouts.

Bill of Quantities Ready

Door & Window Schedules

Detailed schedules specifying exact frame sizes, sill heights, lintel levels, and ventilation areas.

Safety Standards

Sectional & Staircase Details

Riser, tread, handrail heights, floor-to-floor clearances, and double-height slab cut-out sections.

100% Compliant

Municipal Approval Drawings

Standard drawings formatted to local municipality guidelines for swift plan sanctioning and approvals.
